A real FrameScope™ package, start to finish

Hip-roof residence with piggyback trusses, hip girders and a cross gable. Project name, location and project team removed. Placement plan, connection schedule, truss schedule and truss profiles with design output.

118

trusses

truss marks

7,147

board feet, total

0.97

max CSI on the job

4-ply

largest girder (GT01)

Download PDF (13 sheets)Truss schedule (CSV)

Layout and truss profiles

T-1 · Truss placement plan (marked trusses, girders, hangers, legend and notes)

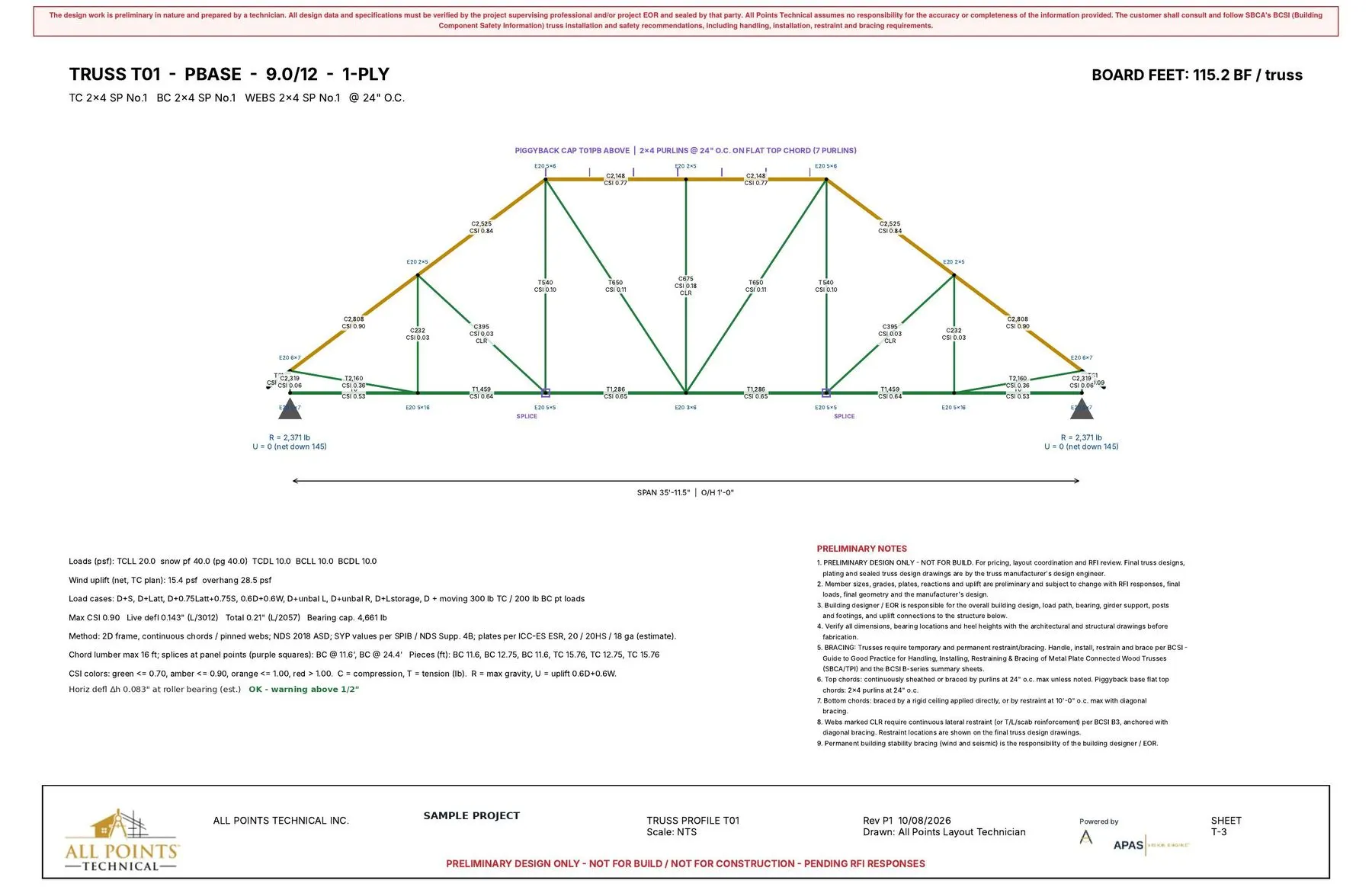

T01 · Common truss with design output

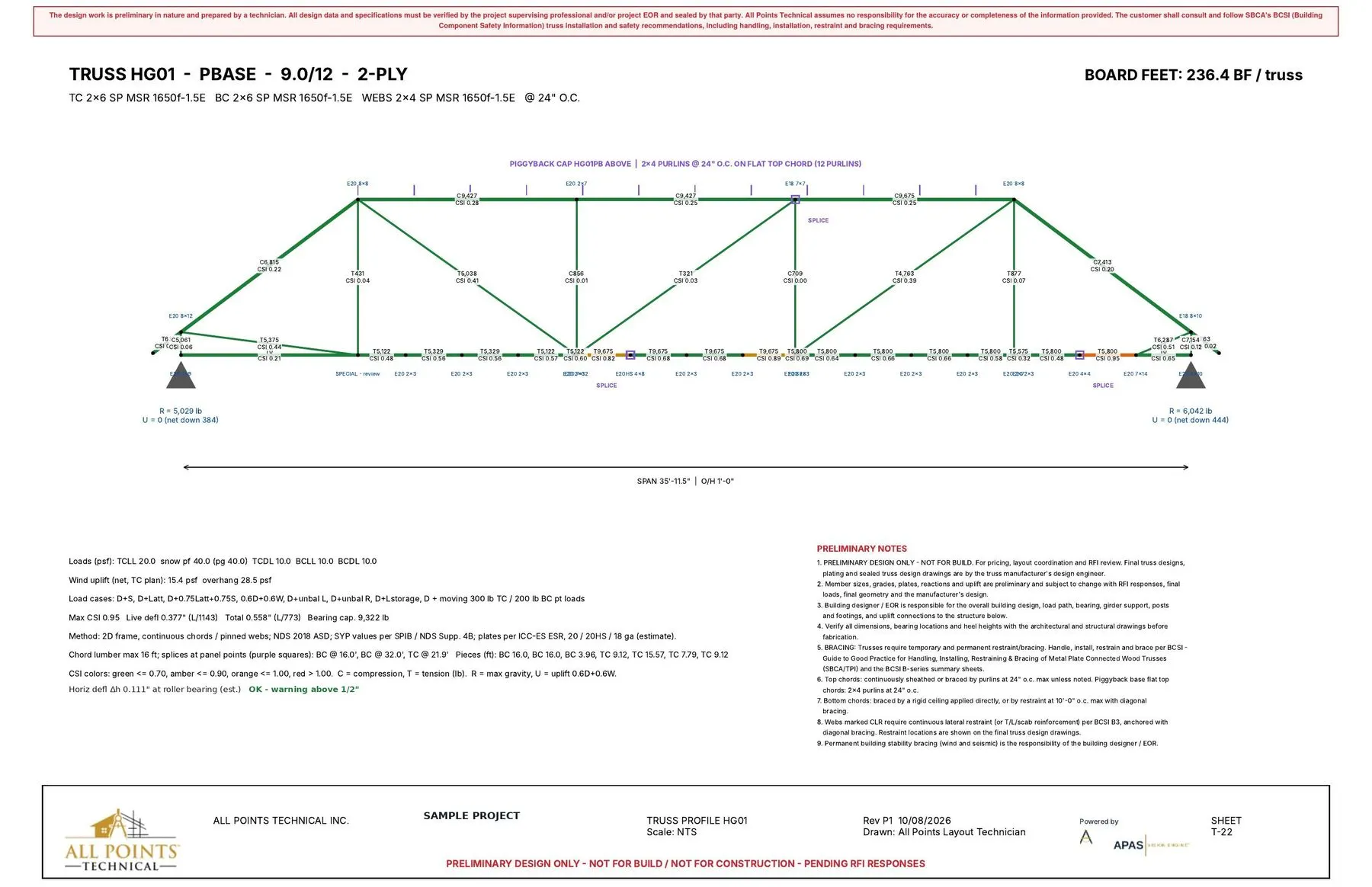

HG01 · 2-ply hip girder

G01 · Girder truss

Full package (13 sheets)

If the viewer does not load on your device, use the download button. Sheets: T-1 placement plan · T-1A connection and uplift schedule · truss schedule (3 sheets) · profiles T01, T01PB, HG01, G01, GG01, C01, H06, V04.

Truss schedule

Mark	Qty	Ply	Type	Span	Pitch	BF total	Reaction R (lb)	Uplift U (lb)	Hanger	Max CSI
T01	1	1	PBASE	35.958'	9.0/12	115.2	2371	0		0.9
T01PB	1	1	FINK	12.75'	9.0/12	29.6	667	24		0.46
T02	9	1	PBASE	35.958'	9.0/12	1036.8	2371	0		0.9
T02PB	9	1	FINK	12.75'	9.0/12	266.4	667	24		0.46
H03	1	1	PBASE	35.958'	9.0/12	111.3	2367	0		0.91
H04	1	1	PBASE	35.958'	9.0/12	118.2	2374	0		0.89
H05	1	1	PBASE	35.958'	9.0/12	110.9	2367	0		0.92
H09	1	1	PBASE	35.958'	9.0/12	122.5	2378	0		0.84
H10	1	1	PBASE	35.958'	9.0/12	115.2	2371	0		0.9
H11	1	1	PBASE	35.958'	9.0/12	118.5	2374	0		0.84
H12	1	1	PBASE	35.958'	9.0/12	110.2	2366	0		0.97
H06	1	1	PBASE	35.958'	9.0/12	115.2	2371	0		0.9
H06PB	1	1	FINK	12.75'	9.0/12	29.6	667	24		0.46
H07	1	1	PBASE	35.958'	9.0/12	115.2	2371	0		0.9
H07PB	1	1	FINK	12.75'	9.0/12	29.6	667	24		0.46
H08	1	1	PBASE	35.958'	9.0/12	115.2	2371	0		0.9
H08PB	1	1	FINK	12.75'	9.0/12	29.6	667	24		0.46
H01	1	1	PBASE	35.958'	9.0/12	98.7	2355	0		0.97
H02	1	1	PBASE	35.958'	9.0/12	113.6	2369	0		0.96
HG01	1	2	PBASE	35.958'	9.0/12	236.4	6042	0		0.95
HG02	1	2	PBASE	35.958'	9.0/12	242.0	4893	0		0.96
GT01	1	4	HOWE6	37.375'	8.0/12	884.4	26669	473		0.96
C01	4	1	PBASE	37.375'	8.0/12	471.6	2459	0		0.95
C01PB	4	1	KINGPOST	11.287'	8.0/12	76.4	583	25		0.79
CE01	1	1	PBASE	37.375'	8.0/12	117.9	2459	0		0.95
CE01PB	1	1	KINGPOST	11.287'	8.0/12	19.1	583	25		0.79
G01	3	1	FINK	21.833'	8.0/12	190.5	1473	0		0.96
GE01	1	1	FINK	21.833'	8.0/12	63.5	1473	0		0.96
GH02	1	1	FINK	21.833'	8.0/12	63.5	1473	0		0.96
GH03	1	1	FINK	21.833'	8.0/12	63.5	1473	0		0.96
GH04	1	1	FINK	21.833'	8.0/12	63.5	1473	0		0.96
GH05	1	1	FINK	21.833'	8.0/12	63.5	1473	0		0.96
GH01	1	1	FINK	21.833'	8.0/12	63.5	1473	0		0.96
GG01	1	2	PBASE	21.833'	8.0/12	110.2	3462	0		0.96
B01	1	1	KINGPOST	10.833'	8.0/12	29.3	779	0		0.81
BE01	1	1	KINGPOST	10.833'	8.0/12	29.3	779	0		0.81
CJ01	1	1	MONO	2.25'	8.0/12	6.5	264	17	SUR/SUL24 (C1)	0.37
CJ02	1	1	MONO	4.5'	8.0/12	13.8	394	5	SUR/SUL24 (C1)	0.79
CJ03	1	1	MONO	6.75'	8.0/12	22.7	532	0	SUR/SUL24 (C1)	0.46
EJ01	11	1	MONO	7'	8.0/12	257.4	548	0	LUS26	0.48
EJ02	1	1	MONO	6.702'	8.0/12	22.6	529	0	LUS26	0.46
EJ03	1	1	MONO	4.452'	8.0/12	10.7	388	7	LUS26	0.78
EJ04	1	1	MONO	2.202'	8.0/12	8.0	263	16	LUS26	0.36
CJ04	1	1	MONO	2.25'	8.0/12	6.5	264	17	SUR/SUL24 (C1)	0.37
CJ05	1	1	MONO	4.5'	8.0/12	13.8	394	5	SUR/SUL24 (C1)	0.79
CJ06	1	1	MONO	6.75'	8.0/12	22.7	532	0	SUR/SUL24 (C1)	0.46
EJ05	11	1	MONO	7'	8.0/12	257.4	548	0	LUS26	0.48
CJ07	1	1	MONO	6.702'	8.0/12	22.6	529	0	SUR/SUL24 (C1)	0.46
CJ08	1	1	MONO	4.452'	8.0/12	10.7	388	7	SUR/SUL24 (C1)	0.78
CJ09	1	1	MONO	2.202'	8.0/12	8.0	263	16	SUR/SUL24 (C1)	0.36
CJ10	1	1	MONO	1.777'	9.0/12	5.7	241	20	SUR/SUL24 (C1)	0.29
CJ11	1	1	MONO	3.556'	9.0/12	11.8	338	9	SUR/SUL24 (C1)	0.61
CJ12	1	1	MONO	5.333'	9.0/12	12.8	440	3	SUR/SUL24 (C1)	0.96
EJ06	7	1	MONO	7'	9.0/12	170.8	548	0	LUS26	0.48
HJ01	3	1	MONO	9.366'	8.0/12	81.9	968	0	SPECIAL (H3, RFI 22)	0.85
HJ02	1	1	MONO	10.536'	9.0/12	31.3	1070	0	SPECIAL (H3, RFI 22)	0.82
V02	1	1	KINGPOST	7.02'	8.0/12	11.9	398	0		0.4
V03	1	1	KINGPOST	11.52'	8.0/12	19.5	653	0		0.85
V04	1	1	FINK	16.02'	8.0/12	35.5	916	0		0.65
V05	1	1	FINK	20.52'	8.0/12	45.4	1173	0		0.83
V06	1	1	HOWE6	25.02'	8.0/12	69.4	1444	0		0.62
V07	1	1	HOWE6	29.52'	8.0/12	81.8	1704	0		0.8
V08	1	1	HOWE8	34.02'	8.0/12	109.1	1979	0		0.81
VG01	1	1	FINK	16.87'	9.0/12	39.1	966	0		0.67
VG02	1	1	FINK	13.31'	9.0/12	30.9	762	0		0.52
VG03	1	1	KINGPOST	9.75'	9.0/12	17.1	553	0		0.58

Preliminary output for budgeting and preliminary design only; not a sealed design and not for permit, fabrication or construction; not a firm price quote. This sample went through technician review, as with the Pro option.
